COMPACT CONCRETE BATCHING PLANTS

ELKOMIX-35 QUICK MASTER30 m³/h

ELKOMIX-35 QUICK MASTER has the lowest available capacity among the members of ELKON Quick Master Compact Concrete Batching Plant Series. It can be quickly and economically transported to anywhere in the world by only 1 unit 40’ OT container (or by a TIR) thanks to its folding and modular designed structure.

ELKON Compact Concrete Batching Plants, which reflect ELKON's manufacturing culture based on high technology and experience since 1975, provides the following advantages to its users:

- Quick and easy installation (only 1 day)
- Cost effective sea and land transportation (by 1 unit 40’OT Container or 1 unit TIR)
- Possibility of installation on a confined space (12x17 meters)
- Quick and easy relocation
- Flexibility in the configuration
- Minimum foundation cost (only flat concrete surface is adequate for installation)
- Easy maintenance and low operating costs
- High production performance with optimized automation system

To get more details about the advanced manufacturing technology and the components of ELKON Concrete Batching Plants, please visit our Why Should I Prefer ELKON? Page.

Mixer Types

Aggregate Bin Types

Aggregate Transfer Types

Production Types

FEATURES

Imperial

Metric

Capacity 30 m³/h 39 yd³

The Capacity of Aggregate Silo 4x7,5 / 3x10 m³ 4x10 / 3x13 yd³

The Capacity of Aggregate Weigh Hopper 1250 kg 2756 lb

Loading Type of Aggregate to the Mixer Skip Hoist Skip Hoist

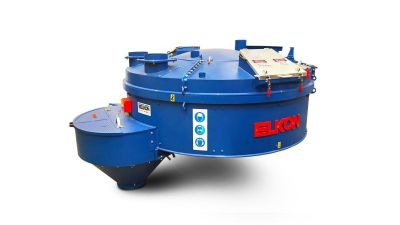

Mixer Capacity 750 / 500 l 1 / 0,7 yd³

Mixer Type Pan / Planet Pan / Planet

Cement Weighing Capacity 300 kg 661 lb

Water Weighing Capacity 200 kg 441 lb

Additive Weighing Capacity 2x15 l 2x4 gal

Control System SIEMENS or ABB (PLC - PC) SIEMENS or ABB (PLC - PC)

Operator Cabinet Included (Built-in) Included (Built-in)

Cement Screw Diameter (Ø) Ø 165 mm 6 in

Compressor Included Included

GALLERY

DETAILS

ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with the easy transportation advantage to overseas by standard containers during designing phase of Quick Master Compact Concrete Batching Plant series. As a consequence, shipping costs are reduced at least 3-4 times, depending on the destination.

Elkomix-35 Quick Master compact concrete batching plant, which is pre-installed and pre-wired in ELKON factories before the shipment, can be commissioned very quickly in the job sites and be ready for concrete production within only 1 day.

Elkomix-35 Quick Master Compact Concrete Batching Plant along with 1 unit cement silo and an aggregate loading ramp can be installed on as small space as 12x17 meters, which makes it possible to use inside project site freely.
