COMPACT CONCRETE BATCHING PLANTS

ELKOMIX-60 QUICK MASTER55 m³/h

ELKOMIX-60 QUICK MASTER which is equipped with 1500/1000 l. ELKON twin shaft mixer and 4x15 m³ aggregate storage bin can be quickly and economically transported to anywhere in the world by only 2 units 40’ OT container (or by 2 units TIR) thanks to its folding and modular designed structure.

ELKON Compact Concrete Batching Plants, which reflect ELKON's manufacturing culture based on high technology and experience since 1975, provides the following advantages to its users:

- Quick and easy installation (only 1 day)
- Cost effective sea and land transportation (2 units 40’OT container or 2 units TIR)
- Possibility of Installation on a confined space
- Quick and easy relocation
- Flexibility in the configuration
- Minimum foundation cost (only flat concrete surface is adequate for installation)
- Easy maintenance and low operating costs
- High production performance with optimized automation system

To get more details about the advanced manufacturing technology and the components of ELKON Concrete Batching Plants, please visit our Why Should I Prefer ELKON? Page.

Mixer Types

Aggregate Bin Types

Aggregate Transfer Types

Production Types

FEATURES

Imperial

Metric

Capacity 50 - 55 m³/h 65 - 72 yd³/h

The Capacity of Aggregate Silo 4x15 m³ / 3x20 m³ 4x20 yd³ / 3x26 yd³

The Capacity of Aggregate Weigh Hopper 2500 kg 5511 lb

Loading Type of Aggregate to the Mixer Skip Hoist / Transfer Conveyor Skip Hoist / Transfer Conveyor

Mixer Capacity 1500 / 1000 l 2 / 1,3 yd³

Mixer Type Twinshaft / Planetary Twinshaft / Planetary

Cement Weighing Capacity 600 kg 1323 lb

Water Weighing Capacity 300 kg 661 lb

Additive Weighing Capacity 2x25 l 2x6,6 gal

Control System SIEMENS or ABB (PLC - PC) SIEMENS or ABB (PLC - PC)

Operator Cabinet Included Included

Cement Screw Diameter (Ø) Ø 220 mm 8 in

Compressor Included Included

GALLERY

DETAILS

ELKON engineers aimed to combine the advantages of mobile concrete batching plants along with the easy transportation advantage to overseas by standard containers during designing phase of Quick Master Compact Concrete Batching Plant series. As a consequence, shipping costs are reduced at least 3-4 times, depending on the destination.

Elkomix-60 Quick Master compact concrete batching plant, which is pre-installed and pre-wired in ELKON factories before shipment, can be commissioned very quickly in the job sites and be ready for concrete production within only 1 day.

Both skip bucket and transfer conveyor option is available for transferring aggregate in Elkomix-60 Quick Master compact concrete batching plant and the plant can be installed on a flat concrete surface for both option.

RELATED NEWS

Efficiency and High Quality are Offered Together at ELKON

Author : Elkon / Date : 2020-07-11

One of oldest ready mix companies in Czech Republic decided to change their old scraper type batching plant. The company arranged a visit to see ELKON concrete batching plant in operation nearby. During the visit, while ELKON concrete batching plant was monitored in production, at the same time feedback was received from the plant staff. The company which was impressed by what they saw and heard, decided to put up an Elkomix-60 Quick Master Compact Concrete Batching Plant from ELKON product ...

ELKON put up another Concrete Plant in UK

Author : Elkon / Date : 2020-04-03

As ELKON, we have always been supplying quality concrete batching plants and complementary products to support and help our customers for delivering their best service to their customers.A former high quality aggregate supplier which began its activities in early 90's, also started to supply dense concrete blocks as wells as ready mix concrete in Isle of Lewis, decided to expand its fleet and put up an Elkomix-60 Quick Master Compact Concrete Batching Plant as their new concrete ...

ELKON the Choice of KENYAN Professional!

Author : Elkon / Date : 2019-10-03

ELKON, with more than 40 years of experience in Concrete Batching Plant systems, supplied most demanded model, ELKOMIX-60 QUICK MASTER Compact Concrete Batching Plant to NAIROBI-KENYA. ELKON’s fully automated operational solutions in ready-mix business influenced and encouraged the customer about starting business in this sector. In this way, they signed so many projects and supplied high quality concrete for Kenya market so far in North West Nairobi. ELKOMIX-60 QUICK ...

AFRICA’s Largest Oil Refinery is Built with 4 ELKON Concrete Plants by DANGOTE

Author : Elkon / Date : 2019-10-01

Nigeria, Africa’s most populous country, imports virtually all its fuel due to sclerotic and underutilised refineries, and even the state oil company is looking to the 650,000 barrel per day (bpd) Dangote refinery to help address this. The Group has embarked on a landmark integrated Refinery and Petrochemical project. This massive project is the largest industrial complex in the history of Nigeria. Scheduled to be completed by 2020.This huge group company met with ELKON’s quality ...

Second Concrete Batching Plant to Israel’s Electra for Another Signature Project

Author : Elkon / Date : 2019-08-03

ELKON is the most preffered concrete batching plant brand not only in the Middle East but also in the whole world. By means of this good reputation, ELKON keeps providing its concrete machinery to very important projects worldwide. One of the leading infrastructure companies in Israel, ELECTRA Group first met with ELKON quality in 2017 by purcasing 1 unit ELKOMIX-60 Quick Master compact concrete batching plant for multilayer underground carpark project of Jerusalem railway. After ...

Danish Contractor Started Using 2 ELKON Concrete Plants in Ghana

Author : Elkon / Date : 2019-07-30

Danish Civil Engineering firm got a contract from Ghana Highway Authority for construction of Danida Bridges in Northern Ghana last year. The project includes the construction of 7 composite bridges in concrete and steel as well as the establishment of ramps and renovation of 20 km of road.Being well-known both in European and African construction markets with hundreds of high quality concrete batching plants supplied, ELKON was the first name the company considered as their concrete plant ...

ELKON Announces The Commissioning Of A New Concrete Batching Plant In France

Author : Elkon / Date : 2019-05-28

While visiting ELKON’s stand at the exhibition Inter mat 2018 in Paris, a French manufacturer of concrete lego blocks, that is also engaged in stone and earthworks, shared his plan on acquiring a concrete batching plant. Exhibited on the stand a semi-mobile compact concrete batching plant ELKOMIX-60 Quick Master, made a very good impression on a customer. The opportunity not only to discover all the features and characteristics of the plant but also to look into the technical ...

ELKON Grows Its Presence in Australia

Author : Elkon / Date : 2018-09-13

After providing several concrete batching plants to some of the prestigious companies and projects in Australia, Elkon keeps expanding its presence in the continent. First two sales to Australia was made for an offshore LNG Project which were including 2 units Elkomix-135 stationary concrete plant. After that, concrete pipe produder purchased a tailor made Elkomix-90 PL precast concrete plant to maintain their operations smoothly in Sydney. And second purchase of same concrete pipe ...

Ethiopia Construction Sector Expanding with ELKON

Author : Elkon / Date : 2018-06-29

As well as many other countries from all over the world, ELKON is the leading brand in concrete batching plant supply to Ethiopia too by being operational since 2007 with the first concrete plant acquired by BL Harbert International Company, USA for the construction of the US Embassy facilities in Ethiopia. Since then quality, durability and reliability of ELKON products coupled with attentive service and support have been attracting the country’s biggest contractor ...

New Country: SLOVENIA

Author : Elkon / Date : 2018-06-27

A small country of Middle-Europe, Slovenia, hosts some of the most important routes in the region. Two Pan-European transport corridors intersect at Ljubljana. As transit traffic has always played an important role and as the traditional transport and trade routes are being reopened, there is a clear upswing in road and rail transport services. An excellent track-record of Slovenian companies in this line of business coupled with modern transport infrastructure is a proven ...

New Concrete Plant for Giant Contractor “STRABAG”

Author : Elkon / Date : 2018-06-01

STRABAG, one of the biggest contractors of the World (ENR's 2017 Top 250 International Contractors, 9th Place), ordered its 9th concrete batching plant to use in the Thiba-Dam Project, which is governmentally supported and is crucial for Kenya’s economical and infrastructural development. STRABAG and ELKON worked together for the first time in 2013 in the hydro-electricity dam project in Albania-Permeti. From 2013 up to now, STRABAG has chosen ELKON many times. ...

NEW Elkomix-60 Quick Master Started Up in the UNITED KINGDOM

Author : Elkon / Date : 2018-05-09

One of the leading gravel, sand and cement supplier located in Essex, chose ELKOMIX-60 Quick Master Compact Concrete Batching Plant for their concrete production. ELKOMIX-60 Quick Master Compact Concrete Batching Plant is equipped with 1500/1000 l. ELKON Twinshaft Mixer for a vibrated concrete production of 50-55 m3/h. The plant has an interlock security system to prevent unwanted accidents from happening. In this system, interlocks are placed at mixer maintenance gates ...

Great Interest for ELKON during Intermat 2018 Exhibition at Paris, FRANCE

Author : Elkon / Date : 2018-05-07

ELKON was at Intermat Exhibition in Paris in the outdoor area where exhibits its compact concrete plant, ELKOMIX-60 Quick Master with its branch in Lyon. ELKOMIX-60 Quick Master concrete batching plant which is one of ELKON's best-selling models drew a great interest by all the visitors during the fair. ELKON which marked Intermat with its high tech ELKOMIX-60 Quick Master attracted many visitors and accentuated its strong presence in France. ...

ELKON is Well-Known Mark in Poland’s Concrete and Construction Industry

Author : Elkon / Date : 2018-02-23

ELKON put many concrete batching plants in Poland within 2017 too. Satisfied customers keep bringing more to ELKON in Poland as well as all other countries where the quality of ELKON concrete plants are being experienced. At the beginning of the year, 1 unit ELKON Mobile Master-150 Elephant Mobile Concrete Plant was supplied to the country’s biggest private owned ready mix company for their road project. ELKON Mobile Master-150 Elephant is the highest capacity mobile plant ...

New Installations in United Kingdom

Author : Elkon / Date : 2018-02-21

ELKON proves its name as a trustworthy concrete plant supplier of the Kingdom’s concrete industry with its plants successfully running in the region. First ELKON Plant supplied to UK was to Marshalls over a decade ago. Since that time ELKON has supplied many concrete batching plants not only to the very big concrete and concrete products suppliers of UK but also to the very important construction projects which shape the region’s new look. Right now, companies like CRH, Balfour ...

2 more ELKON Concrete Plants for AG DANGOTE

Author : Elkon / Date : 2017-10-16

Thanks to high quality products and service provided, ELKON has many loyal customers all around the world. African giant Dangote is one of them. When Dangote decided moving into road construction has joint ventured with Andrade-Gutierrez of Brasil and AG DANGOTE Construction Company was established. AG Dangote had ordered their first ELKON Concrete batching plant at that time and they constructed the hitherto deplorable 25 km. long Ibese-Itori road, as a corporate social ...

4th ELKON Concrete Plant Installed in Georgia This Year

Author : Elkon / Date : 2017-08-21

Once again, Georgian builders prefer ELKON to supply concrete for their projects. The customer from the city of Stepantsminda purchased a compact concrete plant, ELKOMIX- 60 QUICK MASTER for the construction of a bus terminal. The configuration of the ordered concrete plant includes 3x20 m³ linear hoppers for aggregate and a conveyor for feeding material to twin shaft mixer. The capacity of a such installation is 50-55 cubic meters of vibrated concrete per hour. To ensure an optimal ...

Expanding Export Geography with addition of Bolivia

Author : Elkon / Date : 2017-08-18

Portugese company which is already running 4 units ELKON concrete batching plants in various countries, ordered their 5th ELKON plant for their first consruction project in Bolivia. The project is building of a sports village for 11th South American games which will take place in Cochabamba in 2018. In the sports village there will be a velodrome, an athletics track and games, and a hotel, in addition to all the infrastructures, streets, parking lots and green areas ...

One More ELKON Plant to Poland

Author : Elkon / Date : 2017-07-12

One of the leading ready-mix company in Poland, which is being aware of importance to produce high quality concrete in order to being pioneer in the sector, choose Elkomix-60 Quick Master compact type concrete batching plant to achieve its target. This plant has 50-55 m³/hour production capacity with its 1500/1000 l. twin shaft mixer and it is equipped with skip hoist elevation system to be able use the existing job site in a very efficient way. Moreover, Elkomix-60 Quick Master ...

ELKON was in CTT Expo in Moscow, Russia

Author : Elkon / Date : 2017-07-05

With 15 years of presence in the Russian market, ELKON has achieved great results and has broken all the records: almost 1000 units concrete batching plant are installed in the country. It should be noted that ELKON is the only supplier that has successfully installed concrete batching plant as much holding 35% of the market of all foreign concrete plant suppliers in Russia. One more time, ELKON was participated CTT Exhibition taking place each year in Moscow and representing an ...

First ELKON Concrete Batching Plant in Mauritius

Author : Elkon / Date : 2017-03-29

ELKON has just installed its first concrete batching plant in Mauritius. The plant was commissioned for a major construction company of Mauritius. Among the wide range of ELKON equipment’s, the company has chosen ELKOMIX-60 Quick Master Compact Concrete Batching Plant with a real capacity of 55 m³/h and it is equipped with skip hoist elevation system to be able use the existing job site in a very efficient way. Moreover, the plant is equipped with aggregate pre-feeding system to ...

Innovative Solutions Worldwide

Author : Elkon / Date : 2017-03-03

With more than 450 concrete plants in Africa, ELKON is the most famous concrete batching plant brand in the continent having innovative products as per the region’s requirements. African company which is one of the biggest ready-mix and concrete product supplier in Tanzania add ELKON mixing plant in their fleet as well. Tanzanian company chose ELKOMIX-60 Quick Master compact type concrete batching plant to supply concrete for a power plant project in Dar Es Salaam. ...

Supply to 100 MW Solar Farm Project in South Africa

Author : Elkon / Date : 2016-12-02

South African company is a family owned company established in 80’s and grew into a multi-discipline construction company specializing in civil engineering, readymix concrete as well as general building works. The concentrated solar park, situated in the Northern Cape Province, 600 km South-West of the Pretoria, is expected to be operational in the second half of 2018. It is not only provides a clean energy future for South Africa, but also brings economic development to ...

New ELKON Concrete Batching Plants in the Phillippines

Author : Elkon / Date : 2016-10-01

As a global company, ELKON keeps its existence in the furthermost countries with the quality and reliability. After Australia, India, Malaysia, Papua New Guinea, Indonesia and Bangladesh ELKON’s new destination is Philippines in South East Asia. One of the leading construction companies which is serving in Power and Utilities, Infrastructure and Civil Engineering sectors in the Philippines has ordered 2 units ELKON Compact Concrete Batching Plants at the same time. One is ...

Concrete Has Been Produced in ETHIOPIA with ELKON

Author : Elkon / Date : 2016-08-12

ELKON, which broke into Ethiopian Market with the sale of Mobile Concrete Batching Plant to USA giant BL Harbert Company for Addis Ababa USA Embassy Project in 2008, continues its strong presence in the market. Considering the new sales to the market, it seems that ELKON remain its leader position for long time. Our new client is one of the Grade 1 Construction Company of various construction projects such as residence, office building, hospitals, campuses, etc. placed an order ...

Ready Mix Industry In Hungary Taking Big Strides

Author : Elkon / Date : 2016-08-11

Hungry has speeded up the infrastructure projects with the funds provided by EU. It is being planned the installation of several industrial facilities in the province of Heves- Gyöngyös. With the aim to supply readymix concrete to the housing projects and factory investments to be made in the city which is located 80 km east of the countries capital Budapest, Elkomix-60 Quick Master Compact Concrete Batching Plant was chosen. Because of the limited area available for ...

ELKON Proudly Presents High Quality to ETHIOPIA

Author : Elkon / Date : 2016-06-30

One of the leading companies of the high-budget construction projects in Ethiopia chose two units ELKOMIX-60 Quick Master Compact Concrete Batching Plant for its new road projects. Our client bought its first ELKON Concrete Batching Plant in 2012. Since 2012, its first ELKOMIX-60 Quick Master Compact Concrete Batching Plant has been providing high quality concrete for their projects. New ELKOMIX-60 QUICK MASTER Compact Concrete Batching Plants are equipped with 1500/1000 l. ...

Russian Market Leader, ELKON Made a Great Show During CTT Exhibition

Author : Elkon / Date : 2016-06-17

In Early June, Moscow hosted the main event of the Russian construction sector - Exhibition CTT 2016 in which ELKON exhibited its equipment. ELKON provided its visitors an excellent opportunity to examine all the details of the ELKOMIX-60 QUICK MASTER Compact Concrete Batching Plant with transfer conveyor belt and 3x20=60 m3 Aggregate Storage Bins Capacity. ELKON booth drew the attention of many Russian clients as well as several construction companies from all over the ...

ELKON: Most Preferred Brand in Nigeria

Author : Elkon / Date : 2016-05-21

ELKON consolidated its partnership with one of the fastest growing construction service companies in Nigeria which is focusing on Building Construction, Remodeling of Roads, Installation of High Security Fence, Water & Pipeline Network Installation etc. As a result of the meeting the expectations with regard to quality and service after using ELKOMIX-60 QUICK MASTER Compact Concrete Batching Plant since 2012, the Nigerian company invested one more time in a new ready-mix ...

Mega Projects are Rising with ELKON

Author : Elkon / Date : 2016-04-11

Albania relies on hydropower for about 90% of its electricity production. The Okshtun Hydropower Project is currently the first large scale public-private-partnership investment in the country and one of the largest hydropower investments in the Balkans. Within this concept, MOBILE MASTER -135 JAGUAR Mobile Concrete Batching Plant which is equipped with 4500/3000 l. Twinshaft mixer specially designed for RCC concrete production was supplied to our customer. The Mobile Concrete ...

Construtora OAS is Executing Largest Housing Project in Ghana

Author : Elkon / Date : 2015-11-18

Ghana is set to get more than 9,000 housing units to help bridge the country's expanding housing gap and to reduce poverty and improve social indicators. The Saglemi project is being undertaken by Construtora OAS Ghana Limited, a Brazilian construction firm for $200 million, and funded by Emerging Markets Fixed Income Division of the Credit Suisse, London. A total of 5,000 of the units will be built by Brazilian company Construtora OAS. Construtora OAS which is a pioneer in ...

New Concrete Plant To Strabag

Author : Elkon / Date : 2015-10-07

STRABAG which is a global giant of construction sector based in Austria is replaced its old batching plant with a brand new Elkomix-60 Quick Master Compact Concrete Plant. STRABAG, which is running hundreds of concrete batching plants worldwide, started its collaboration with ELKON on 2013 in their hydro power project in Albania. As a result of the satisfaction obtained from the high quality and reliable concrete batching plants of ELKON as well as high level after sales ...

UK’s Largest Producer Chose ELKON

Author : Elkon / Date : 2015-06-16

Owing to the manufacturing quality, superior features of the concrete batching plants and with the production and sales numbers, ELKON, which is the largest manufacturer of concrete batching plants not only in Turkey but also in Europe, continues to include leading companies of the world in its references. Having more than 150 concrete batching plants in UK and performing 2 million cubic meters of concrete production per year, Hope Construction Materials is the largest concrete ...

ELKON in Latin America

Author : Elkon / Date : 2015-04-17

The collaboration with STRABAG Company (Austria), which is the 6th biggest international construction company according to the ENR Top 250 (2014) list, is continuing with sales of 4 units Elkomix-60 Quick Master Compact Concrete Batching Plant which are going to be used for Alto Maipo Tunnel Project in Chile. STRABAG Company met with ELKON’s quality with the Elkomix-60 Compact Concrete Batching Plant which they bought for Hydroelectric Power Plant Project in ...

Elkomix-60 Quick Master is Used for Upgrade & Expansion of Kigali International Airport in Rwanda

Author : Elkon / Date : 2015-02-27

Roko Construction Limited Company who was found in 1969 and is today one of the leading Construction & Civil Engineering Company in Uganda has ordered 1 unit Elkomix-60 Quick Master Compact Concrete Batching Plant for the Upgrade & Expansion of Kigali International Airport Project in Rwanda. Elkomix-60 Quick Master Compact Concrete Batching Plant, which is operating in Rwanda now, has 55 m³/hour vibrated concrete production capacity and has equipped with 1500/1000 l. ...

The World's Giant Construction Company; Strabag Has Chosen ELKON

Author : Elkon / Date : 2013-11-25

Austrian construction company STRABAG has preferred Elkomix-60 Quick Master Compact Concrete Batching Plant to produce concrete for the Hydro Electric Power Station Project in Permeti, Albania. Quick Master Series compact concrete plants which have been added into the production range of ELKON in 2009, have been very popular all around the world with their several advantages like Easy & Quick Installation, Minimum foundation cost, Compact Installation Area, Less Transportation ...

ELKON Compact Batching Plants will be exhibited on Bauma Show

Author : Elkon / Date : 2013-04-03

World's leading manufacturer and exporter about concrete batching plants "ELKON" is going to show its glamorous power and technology on BAUMA 2013 open-air ground F9, 904/1 with its compact Concrete Batching Plants which are Elkomix-35 Quick Master and Elkomix-60 Quick Master produced with highest technology and 38 years' wide experience. These new generation Concrete Batching Plants are most in-demand models with its great transport advantage to all over the world. Technical details ...

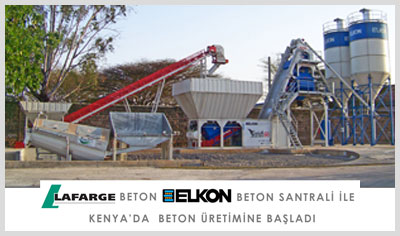

LAFARGE Has Started to Produce Concrete in Kenya with ELKON
